Pacshield 80/20 Welding Gas Mix

Our Pacshield 80/20 Argon/CO2 is a premium industrial gas mix designed to deliver superior results in welding applications, offering a precise balance of gases to enhance arc stability, penetration, and weld quality.

PRODUCT ENQUIRY

Key Features and Benefits:

  1. Enhanced Arc Stability: The Pacshield 80/20 Argon mix combines 80% argon and 20% carbon dioxide, providing excellent arc stability during welding processes. This stability ensures consistent and controlled heat transfer, resulting in improved weld puddle control and reduced spatter.
  2. Increased Penetration: The addition of carbon dioxide in the gas mix enhances weld penetration, making it suitable for thicker materials and challenging welding environments. This increased penetration leads to stronger and more reliable welds, even in demanding applications.
  3. Reduced Oxidation: Argon 80/20 creates a protective atmosphere around the weld area, minimising oxidation and preventing contamination of the weld metal. This results in clean, high-quality welds with improved mechanical properties and corrosion resistance.
  4. Versatile Applications: Our Pacshield 80/20 Argon/CO2 mix is suitable for a wide range of welding processes, including MIG (Metal Inert Gas) welding, flux-cored arc welding (FCAW), and metal fabrication. Whether you’re working with carbon steel, stainless steel, or non-ferrous metals, this gas mix delivers excellent performance and weld consistency.
  5. Cost-Effective Solution: By optimising shielding gas composition and performance, Pacshield 80/20 Argon/CO2 offers a cost-effective solution for welding applications. It helps improve productivity, reduce rework, and lower overall welding costs while maintaining high weld quality and integrity.

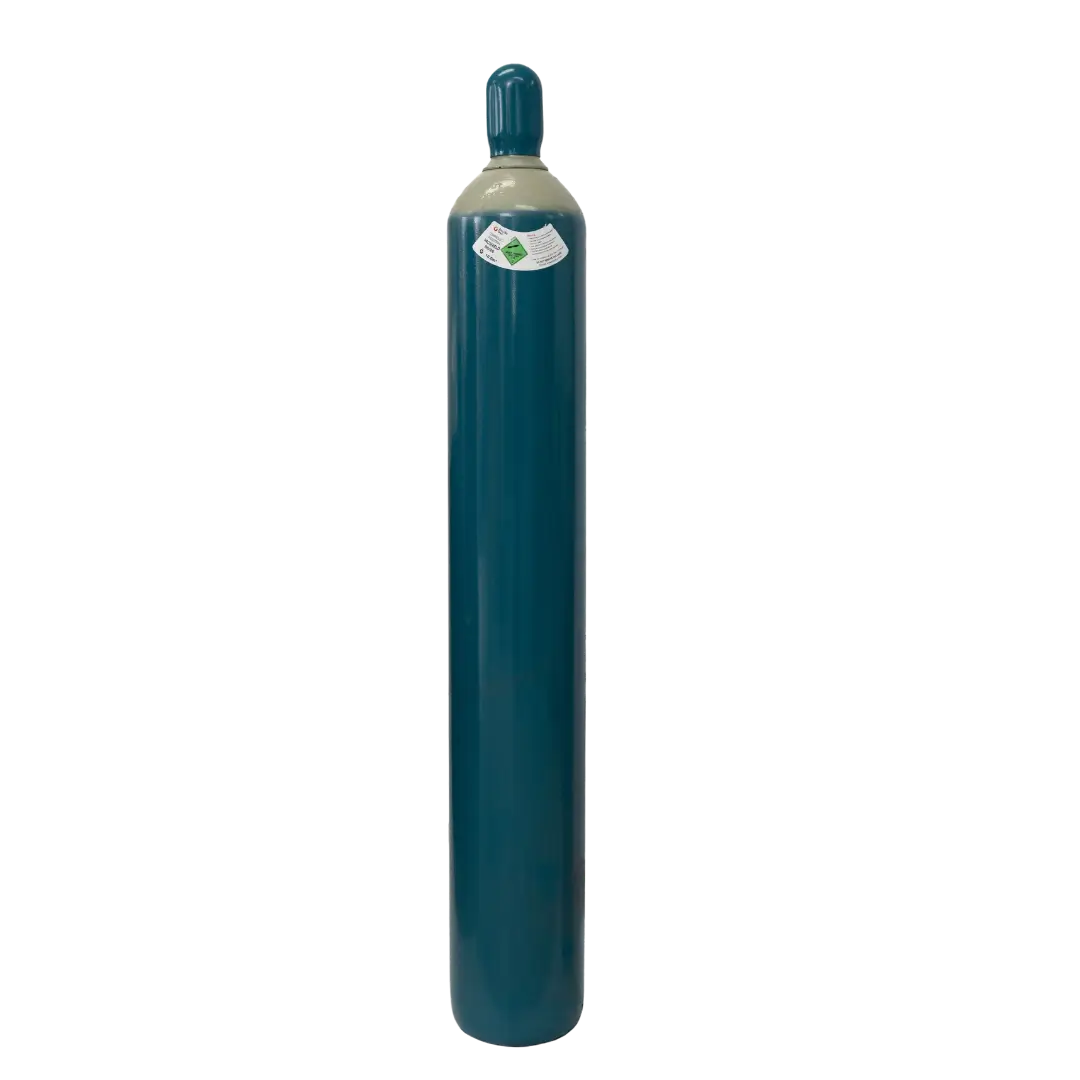

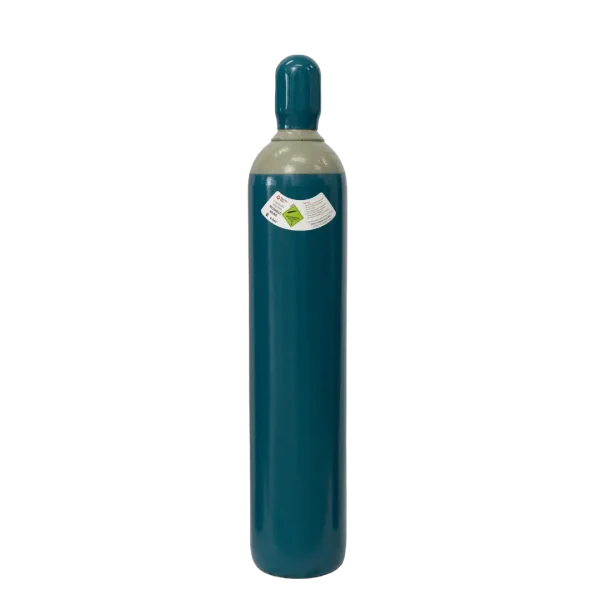

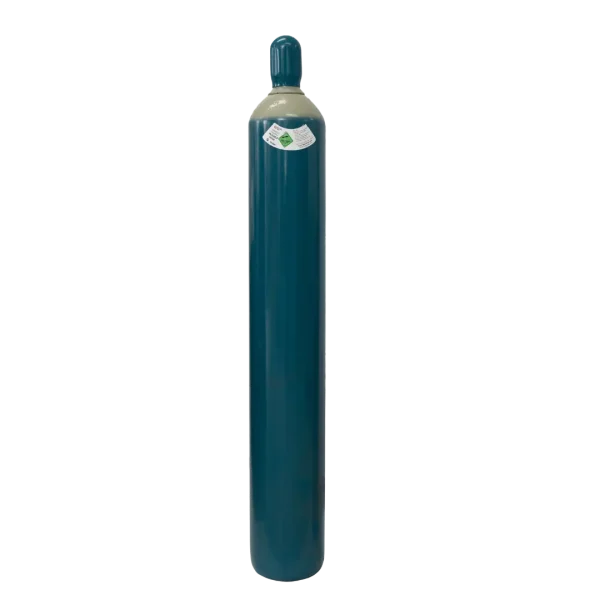

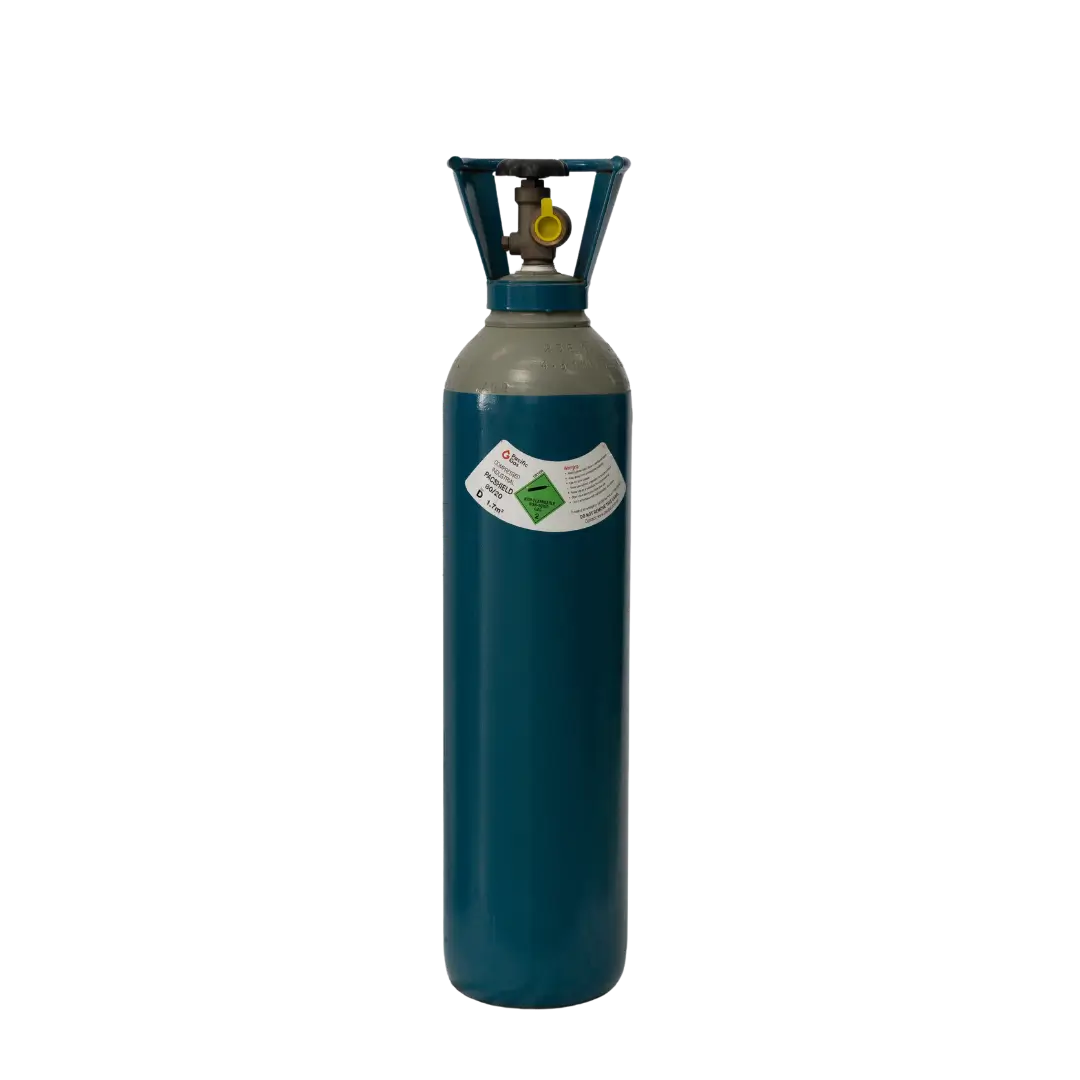

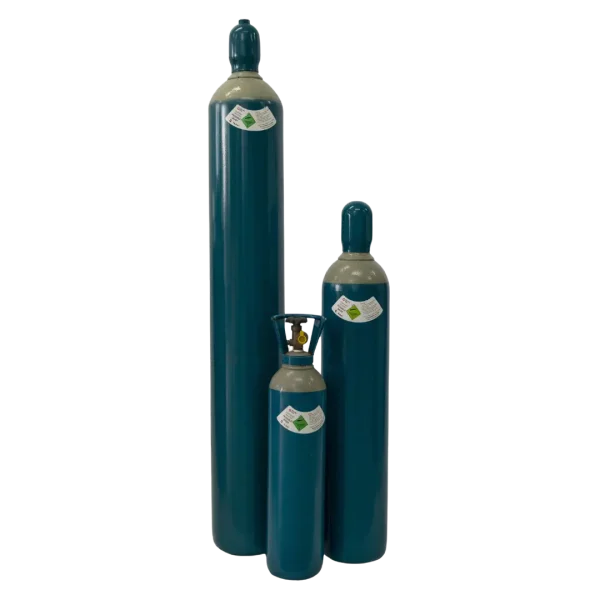

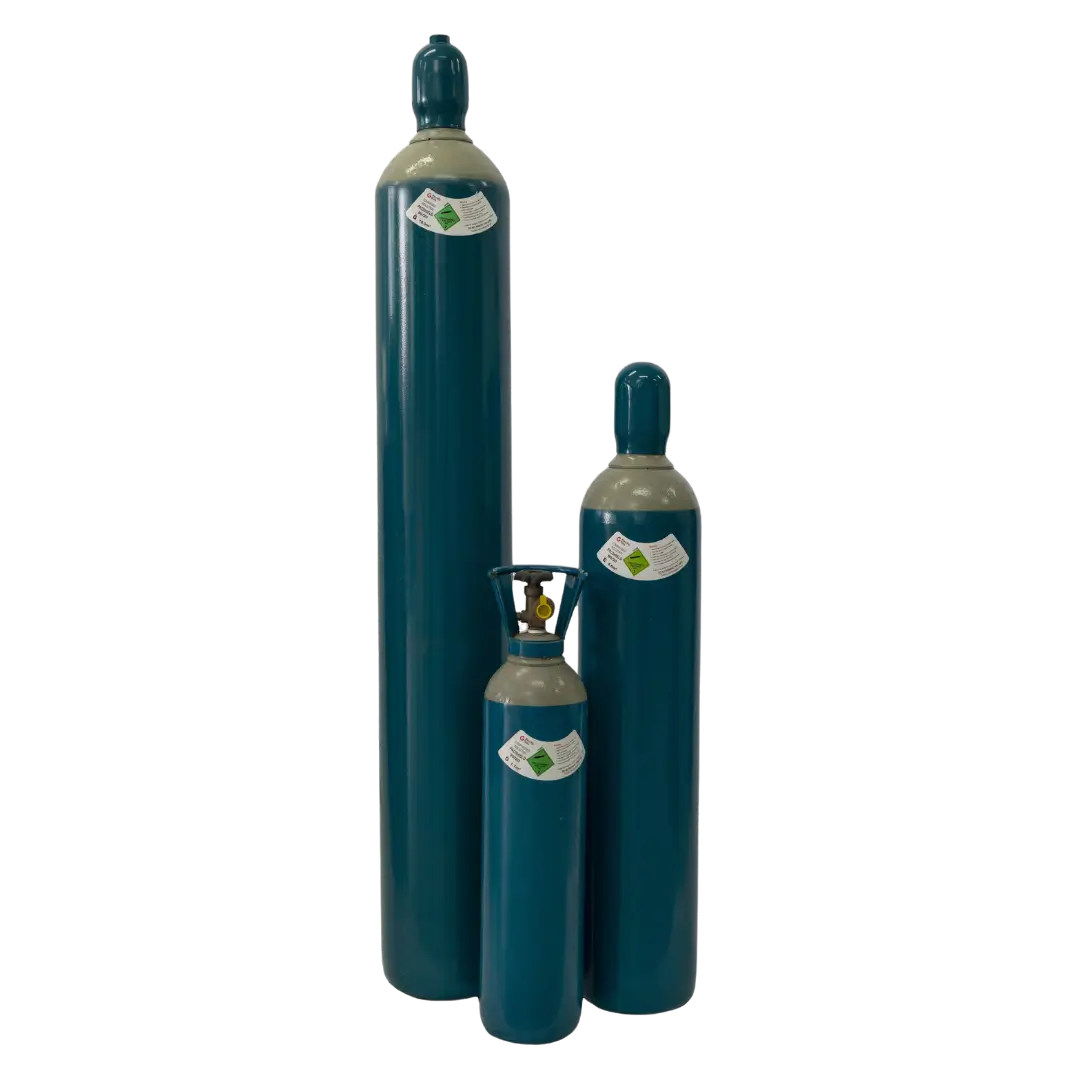

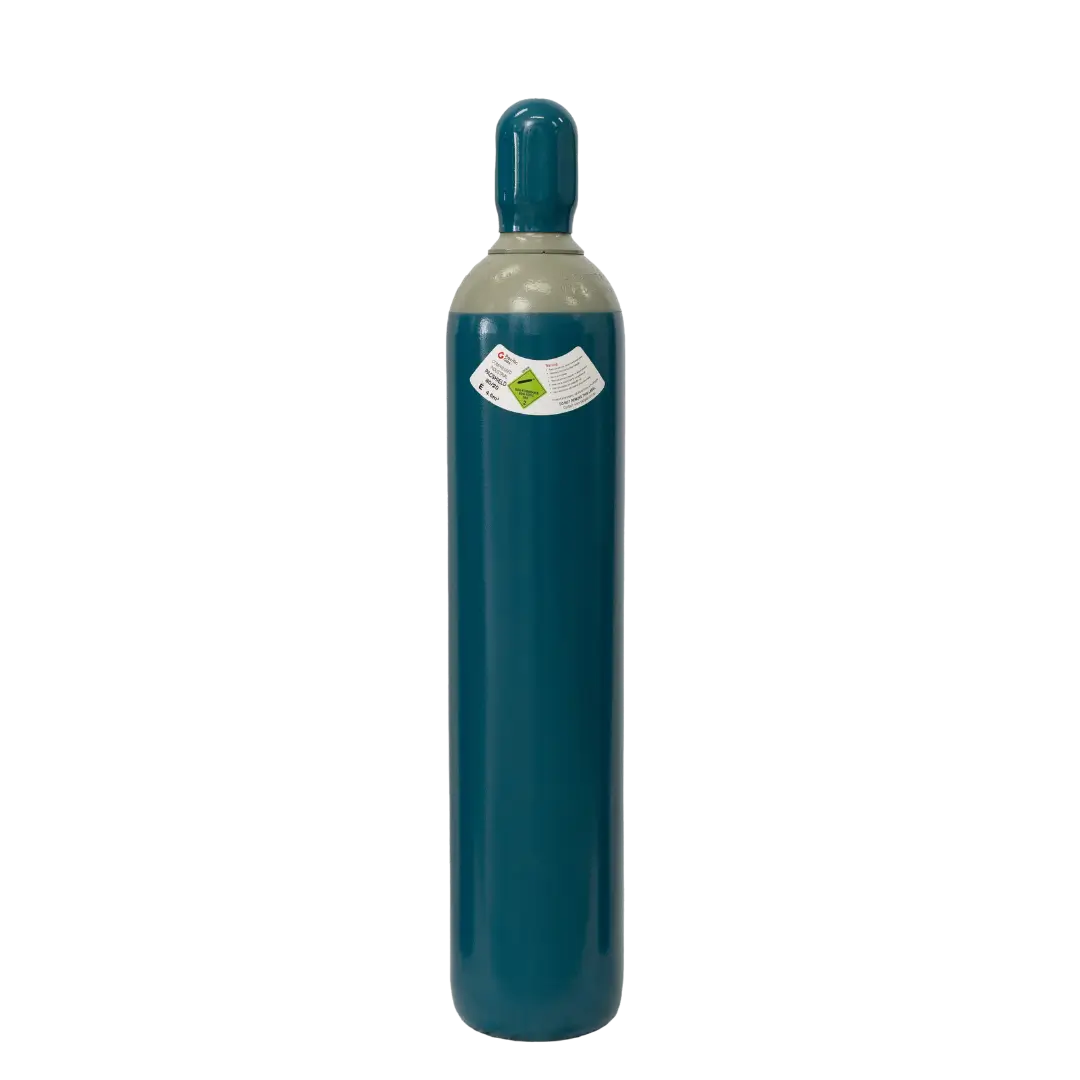

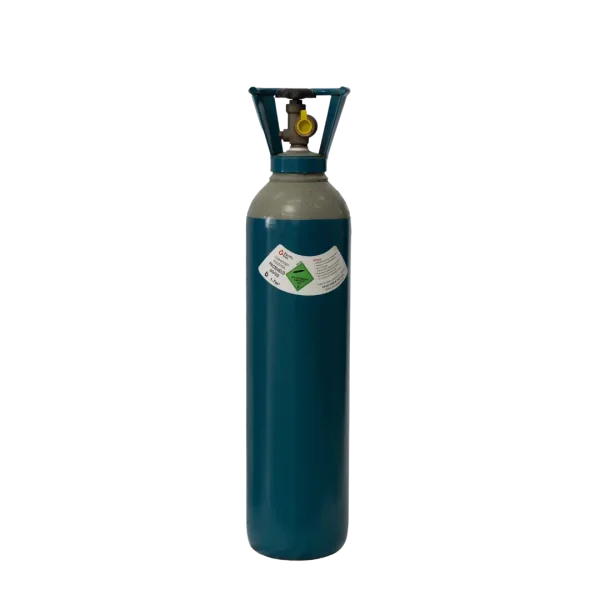

SpecificationCylinder DCylinder ECylinder G
Cylinder contents m3 (101.325kPa @ 15ºC)1.7 m34.6 m310.0 m3
Water capacity per cylinder10L23L50L
Cylinder colourPeacock Blue
Pewter (Shoulder)		Peacock Blue
Pewter (Shoulder)		Peacock Blue
Pewter (Shoulder)
Outlet connectionType 10Type 10Type 10
Dimensions75cm H x 17cm Dia105cm H x 21cm Dia163cm H x 25cm Dia

Cylinder dimensions are approximate – variations occur due to manufacturing tolerances. Height includes the valve.

Material Safety Data Sheet: Download Pacshield 80/20 Argon Mix

Applications of Pacshield 80/20 Argon Industrial Gas Mix:

  1. MIG Welding (Carbon Steel, Stainless Steel): Argon 80/20 is widely used in MIG welding applications for both carbon steel and stainless steel materials. The gas mix provides excellent arc stability and weld puddle control, making it suitable for welding structural components, automotive parts, pipelines, and machinery with precision and efficiency. The increased carbon dioxide content enhances weld penetration, allowing for deeper and stronger welds on thicker materials.
  2. Flux-Cored Arc Welding (FCAW): Pacshield 80/20 Argon/CO2 is compatible with flux-cored arc welding processes, providing excellent shielding and arc characteristics for welding thick materials, structural steel, and heavy machinery components. The gas mix enhances weld quality, deposition rates, and weld bead appearance, making it suitable for high-strength welding applications in construction, shipbuilding, and heavy equipment manufacturing.
  3. Metal Fabrication: Beyond specific welding processes, Pacshield 80/20 Argon/CO2 mix is widely used in metal fabrication shops for various fabrication techniques, including cutting, bending, and joining of metal components. The gas mix ensures clean and precise cuts in plasma cutting and laser cutting operations, as well as consistent weld quality in fabrication projects ranging from small-scale prototypes to large-scale assemblies.
  4. Structural Welding: In structural welding applications, Pacshield 80/20 Argon/CO2 mix provides the necessary shielding and penetration capabilities for welding structural steel beams, columns, bridges, and infrastructure components. The gas mix meets structural welding codes and standards, delivering strong, durable welds with minimal distortion and excellent mechanical properties for long-lasting structural integrity.
  5. Automotive Manufacturing: Argon 80/20 plays an important role in automotive manufacturing processes, including welding automotive frames, chassis components, exhaust systems, and body panels. The gas mix ensures precise and reliable welds, corrosion protection, and aesthetic appeal, meeting automotive industry standards for safety, performance, and quality in vehicle production.
  6. Shipbuilding and Marine Industry: In shipbuilding and marine applications, Pacshield 80/20 Argon/CO2 is used for welding hull structures, marine equipment, piping systems, and offshore platforms. The gas mix provides superior corrosion resistance, weld integrity, and mechanical properties in maritime environments, ensuring durability and longevity in marine constructions subjected to harsh conditions.
  7. General Manufacturing and Repair: Pacshield 80/20 Argon is also used in general manufacturing and repair workshops for welding, fabrication, and maintenance tasks across various industries. Whether repairing machinery, constructing metal structures, or fabricating components, this gas mix offers versatility, reliability, and cost-effectiveness in achieving high-quality welds and efficient production processes.
